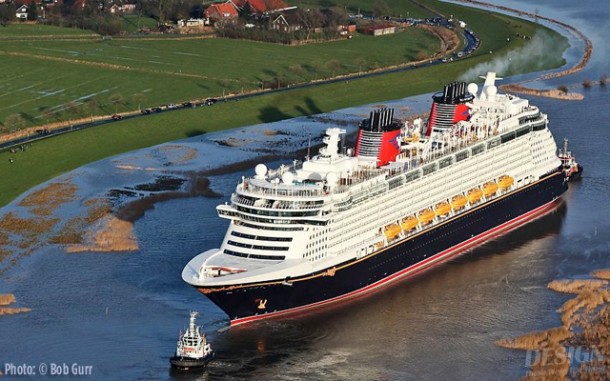

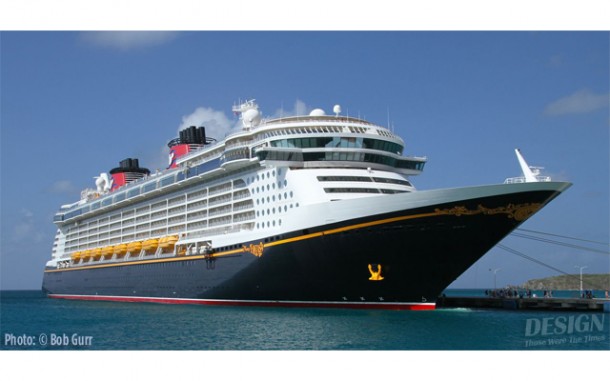

Today’s Wheel of Years has stopped at 2013, so here we go. MiceChat and Fairy Godmother Travel hosted a recent Caribbean Cruise on Disney Cruise Lines fabulous cruise ship, Fantasy. By far the most beautiful cruise ship ever built, the Fantasy is not only attractive, but so innovative in entertainment creations that no other cruise ship even comes close. Disney’s own Imagineering group led the way in the creation of this sensational Floating Disney Resort, working hand in hand with the world famous ship builder Meyer-Werft in Papenburg, Germany. Their shipyard is not at a sea port, but located in a beautiful German farmland. Meyer-Werft ships reach the sea by canal.

pic

While Disney Fantasy guests are captivated by all they can see and experience aboard, There is another Fantasy – the one that remains backstage. Not just the crew and cast member backstage, but the living heart of the ship, hidden deep below decks. Let’s take the secret tour of the Fantasy. Beyond just the giant warehouses that store all the food, supplies, and entertainment, beyond the giant laundry and service facilities common to a Disney Resort, but the beating heart – the engine room. Mysterious and never seen by any guest, it is in it’s own way equally as beautiful as Fantasy’s topside.

A cruise ship is actually two operations; a seaworthy vessel that supports a traveling resort hotel. All the power and utilities are furnished, not from land based suppliers, but internally generated independently while at sea for maybe two weeks at a time supporting perhaps 6,000 guests and crew. Heat and air-conditioning, hot and cold water, sewage and garbage disposal – all must be provided. And oh yes, the whole ship/resort has to drive across the sea at maybe 25 mph. All of this done without a guest ever seeing any of it. To any gearhead, this is the real magic – the secret tour.

pic2

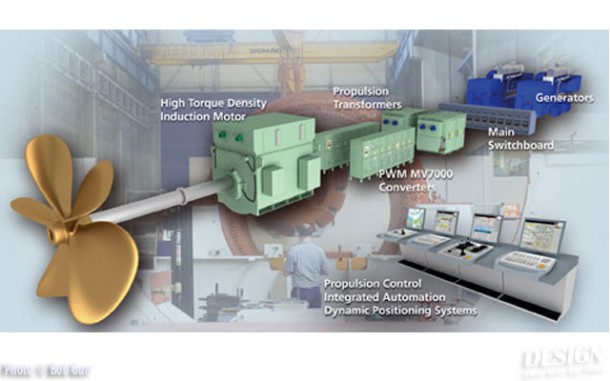

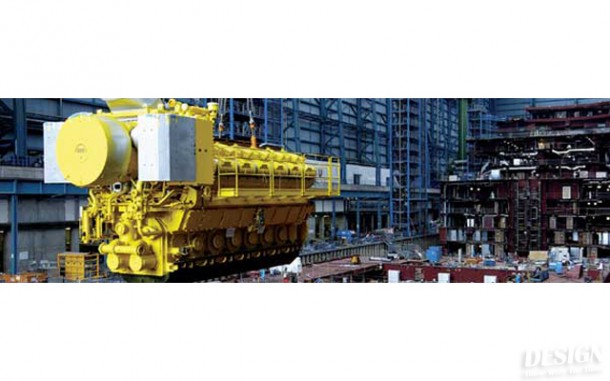

Starting with thousands of tons of diesel fuel which feed five diesel engines that generate massive amounts of high voltage electricity, the heart of the Fantasy is an electrical load center, essentially a city power generating plant. About 80% of this power goes to run the hotel and all the ship’s systems, with 20% used for propulsion. The ship propulsion can be described as diesel engines running electrical generators (alternators) which feed the electrical load center, which in turn power two large electric motors connected to a pair of counter-rotating long shafts terminated with fixed pitch multi bladed propellors rotating at 135 rpm. The diesel engines run at 514 rpm.

In addition to the five diesel engines, separated into two different rooms (any damage to one would not effect the other, same with electric load centers) many other systems are installed. Sea water is picked up and converted to fresh water, while black and gray water is handled by an impressive sewage treatment plant. Then this treated water is injected back into the sea cleaner than when it was picked up. all sewage solids and garbage is incinerated, creating hot water, while giant chiller machines circulate cold water through the ships air conditioning units. Hot water is continuously circulated to all areas so that hot water is instantly available everywhere.

pic3

The Fantasy is equipped with a unique fire control system which utilizes a special fire suppression gas that is harmless to guests and crew. Every cabin and ship space has smoke detectors and gas nozzles that activate without the mess made by water sprinklers. The philosophy is that this gas will quickly control any fire even before a fire crew can arrive. It’s far better to stop any fire in seconds, then follow up with a crew. The below decks fire control system is the absolute latest technology at sea. All of the technical and control functions are centered in the most impressive engineering center ever installed in any cruise ship. What’s so impressive is that all walls and floors are painted a brilliant white, lighting is very helpful to inspection and service. What’s even more impressive is that nothing drips or leaks – the whole place is more like a hospital operating room than a typical ship engine room.

pic5

Additional equipment is also located in the ship; exhaust gas economizers, oil fired steam boilers, emergency diesel electrical generator, various air compressors, oil purifiers, bilge water separators, steering gear, stabilizers, thrusters and such. Much of this equipment is connected by virtually miles of electrical cables, ducts, and piping, all of which is beautifully arranged. Meyer-Werft designs every piping and electrical cable routing by computer, not leaving hook up work to shipyard technicians. The result is the most professional and spectacularly beautiful ship technical installation ever seen. A secret tour of the heart of the ship will prove that the beauty, innovation, and elegance of the Disney Fantasy extends top to bottom. All who built and serve this masterpiece surely must be so proud.

I may have been on a secret tour of the Fantasy, and I’d absolutely like to do it again!
